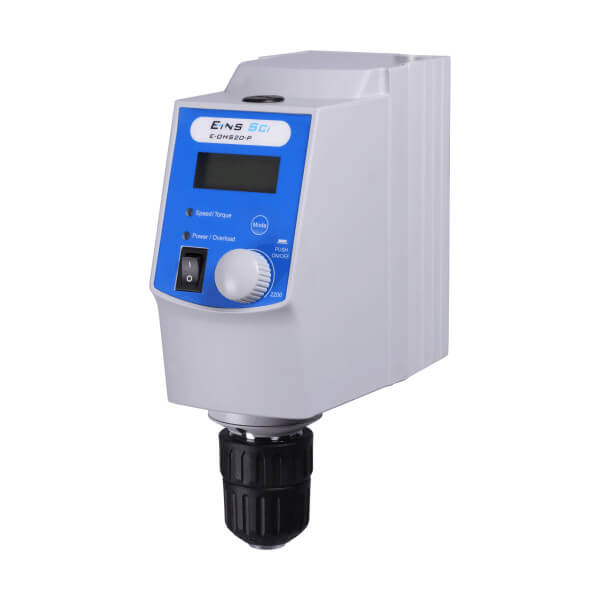

Overhead Stirrer 40L

Overhead Stirrer 40L is suitable for use with low, medium and high viscosity liquids including solid-liquids. overhead stirrers can be used in a wide variety of stirring and mixing applications such as chemical synthesis, pharmaceutical, physical and chemical analysis, cosmetics, food, healthcare, petrochemical, biotechnology, material science, cement, adhesives, polymers and more. Universal laboratory overhead stirrer uses microprocessor controlled technology to accurately control rotational speed between 50 and 2200 rpm. Precise speed control even under viscosity variations, torque monitoring indicates the changes in viscosity. Available in two sizes for stirring of up to 20 liters or 40 liters. Free software is downloadable to allow PC integration via a RS232 port for documenting and controlling all operating parameters. Safety Circuits designed to ensure no damage to the stirrer motor under overloading conditions. Slow start up to prevent sample spillage or overflow.
Includes: Universal Stand, Base: 20cm W x 31cm D x 78cm H
• Maximum Stirring Capacity (H2O) [L]: 40
• Motor Rating Input [w]: 120
• Motor Rating Output [W]: 100
• Motor Drive: Brushless DC
• Speed Range [rpm]: 50 – 2200
• Speed Display: LCD
• Speed Display Resolution [rpm]: ±1
• Speed Display Accuracy [rpm]: ±3
• Viscosity Max [mPas]: 50000
• Power [W]: 130
• Torque Max at Stirring Shaft [Ncm]: 60
• Torque Display: LCD
• Stirring Element Fastening: Keyless Chuck
• Chuck Range Diameter [mm]: 0.5 – 10
• Temperature: No
• Timer: No
• Explosion Proofed: Yes
• Protection Class Acc. to DIN EN 60529: IP42
• Overload Protection: LED Lights, Motor Automatically Stops Motor Protect
• RS232 Computer Interface: Yes
• PC Software Included: Yes
• Dimensions [W x H x D] (mm): 83 x 220 x 186
• Weight [kg]: 2.8
• Permissible Ambient Temperature [°C]: 5 – 40
• Permissible Relative Humidity [%]: 80
• Voltage [VAC]: 100 – 240
• Frequency [Hz]: 50/60
Microprocessor controlled slow start up with gradual acceleration prevents splashing and spillage of liquids. Push-through stirring shaft design allows for easy adjustment. Reliable and ergonomic design. Continuous operation. Brushless DC motor. Explosion proofed. Keyless chuck design for easy shaft adjustment and removal. 10 mm chuck allow for a large range of shafts to be used. RS232 PC Interface for variable control. Overload protection. CE Certified. 2 year warranty.

• 40 Litre Stirring Capacity
• Includes E-OHS-US and E-CS5/40-SS
• Advanced LCD display for accurate setting of speed and display of torque
• Microprocessor controlled slow start up with gradual acceleration prevents splashing and spillage of liquids
• Push-through stirring shaft design allows for easy adjustment
• Reliable and ergonomic design
• Continuous operation
• Brushless DC motor
• Explosion proofed
• Keyless chuck design for easy shaft adjustment and removal
• 10 mm chuck allow for a large range of shafts to be used
• RS232 PC Interface for variable control
• Overload protection
• CE Certified
• 2 year warranty
